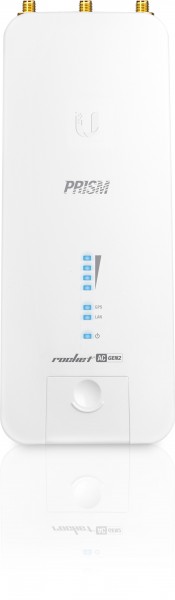

Ubiquiti Rocket ac, 5 GHz RocketPRISM Gen2 Radio, RP-5AC-GEN2
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 140017
- vendor: Ubiquiti
- mnufacturer no.: RP-5AC-GEN2
- EAN No.: 0817882020268
- weight: 1.14kg
- Do you have any questions concerning this product?
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data... more
Product information "Ubiquiti Rocket ac, 5 GHz RocketPRISM Gen2 Radio, RP-5AC-GEN2 "
High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput
5 GHz airPrism active RF filtering technology
450+ Mbps throughput
50+ client capacity
Dedicated spectral analysis radio
Integrated GPS sync
Technical Specifications
Mechanical | |
---|---|
Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
Weight | 400 g (14.11 oz) |
Enclosure material | Die-cast aluminum |
Mounting | Pole mounting (kit Included) |
Wind loading | 342.5 N at 200 km/h (77 lbf at 125 mph) |
Hardware | |
Networking interface | (1) GbE RJ45 port |
RF Connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
Power supply | 24V, 1A Gigabit PoE adapter (Included) |
Supported voltage range | 18—26V DC |
Max. power consumption | 9.5W |
LEDs | (4) Signal strength: software_adjustable to correspond to custom RSSI levels GPS, LAN, power |
RoHS compliance | Yes |
Shock and vibrations | ETSI300-019-1.4 |
Operating temperature | -40 to 80° C (-40 to 176° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Software | |
Modes | Access Point, station |
Channel sizes PtP mode PtMP mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
Services | Web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing |
Utilities | airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test |
Distance adjustment | Dynamic Ack and Ackless mode |
Power adjustment | Software adjustable UI or CLI |
Security | WPA2 AES only |
QoS | Supports packet level classification WMM and user customer level: High/Medium/Low |
Statistical reporting | Up time, packet errors, data rates, wireless distance, Ethernet link rate |
Ubiquiti specific features | 30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode |
Operating Frequency (MHz) | |
Worldwide | 5150–5875 MHz |
USA U-NII-1: U-NII-2A: U-NII-2C: U-NII-3 |
5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5850 MHz |
Management Radio (MHz) | |
Worldwide | 2412–2472 MHz |
USA | 2412–2462 MHz |
