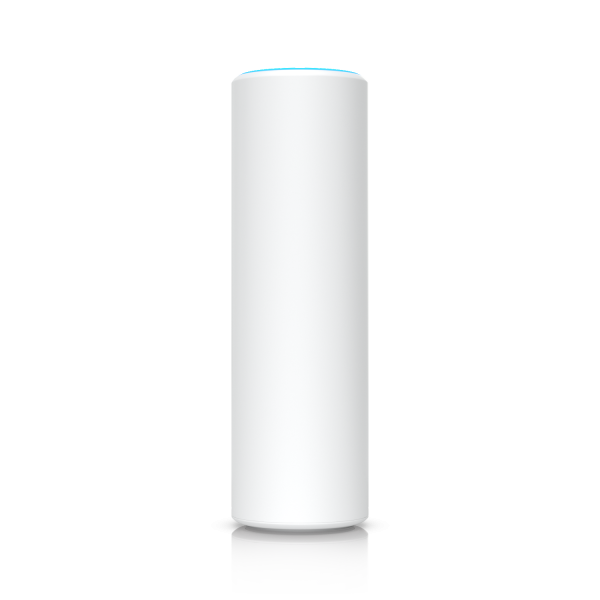

Ubiquiti Unifi Access Point Mesh / Indoor-Outdoor / WiFi 6 Mesh 4x4 Access Point / U6-Mesh
- stock: 0
- part no.: 210475
- vendor: Ubiquiti
- mnufacturer no.: U6-Mesh
- EAN No.: 810010073624
- weight: 0.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Ubiquiti Unifi Access Point Mesh / Indoor-Outdoor / WiFi 6 Mesh 4x4 Access Point / U6-Mesh.
Indoor/outdoor, 4x4 WiFi 6 access point for mesh applications.
The WiFi 6 Mesh (U6 Mesh) access point is a high-performance, four-stream WiFi 6 access point that provides premium signal meshing to improve wireless coverage for home and enterprise networks. The U6 Mesh achieves a total throughput rate of up to 5.3 Gbps in the 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and enable faster data transmission. The sleek U6 Mesh is unobtrusive enough to be placed anywhere in your home or office, but rugged enough to work reliably outdoors thanks to its IPX5-rated waterproof housing. The U6 Mesh is a plug-and-play device that makes it easy to extend your Wi-Fi signal for complete, seamless coverage and high-quality Wi-Fi connectivity. It can be set up in minutes and fully managed with the UniFi Network web app or mobile app.
Features:
- High-efficiency 4x4 WiFi 6 (802.11ax).
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a throughput rate of 4.8 Gbps
- 2.4 GHz band (2x2 MIMO) with a throughput rate of 573.5
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- Powered via 802.3af PoE (PoE adapter included)
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø48.5 x 159.5 mm (Ø1.9 x 6.28") |
| Weight | 400 g (0.88 lb) |
| Enclosure material | Plastic, aluminum |
| Mount materials | Plastic |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interfaces | Ethernet Bluetooth |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.32A PoE adapter (included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 11.4W |
| Max. TX power 2.4 GHz 5 GHz |
22 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 4.8 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
3 dBi 5 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, desktop, pole mount (Included) Ceiling mount (Optional) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero wait DFS | Yes* *Supported with upcoming firmware versions |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.2.51 and later |
