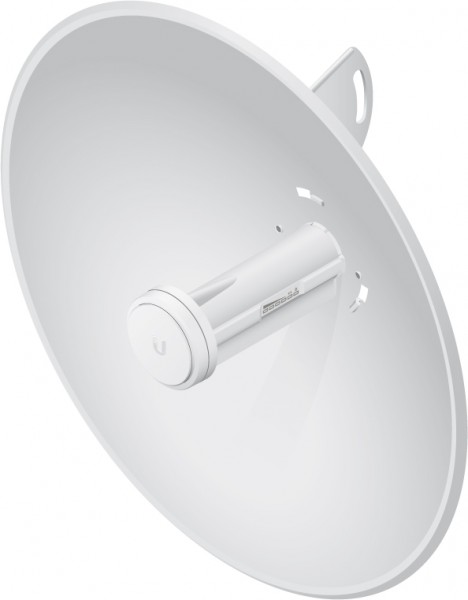

Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE
![Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE](https://shop.allnet.dk/media/image/10/4b/6f/AIMG6413FE7D49_600x600.jpg)
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 114232
- vendor: Ubiquiti
- mnufacturer no.: PBE-M5-400
- EAN No.: 810354022623
- weight: 2.436kg
- Do you have any questions concerning this product?
Downloads
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_datasheet.png)
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
5 GHz, 25 dBi bridge with 150+ Mbps throughput.
5 GHz, 25+ km link range
150+ Mbps... more
Product information "Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE"
5 GHz, 25 dBi bridge with 150+ Mbps throughput.
5 GHz, 25+ km link range
150+ Mbps throughput
Improved mounting
Technical Specifications
Mechanical | |
---|---|
Dimensions | 420 x 420 x 275 mm (16.54 x 16.54 x 10.83") |
Weight | 1.75 kg (4.8 lb) |
Enclosure material | UV-stabilized plastic |
Mounting | Pole mount kit (Included) |
Wind survivability | 200 km/h (125 mph) |
Wind loading | 342.5 N @ 200 km/h (77 lbf @ 125 mph) |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
Max. power consumption | 8W |
Max. TX power | 26 dBm |
Gain | 25 dBi |
ESD/EMP protection | Air/contact: ± 24 kV |
LEDs | (1) Power, (1) LAN, (4) WLAN |
Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels |
RoHS compliance | Yes |
Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
Vibration test | IEC 68-2-6 |
Temperature shock test | IEC 68-2-14 |
UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
Operating temperature | -40 to 70° C (-40 to 158° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
System | |
Gain | 22 dBi |
Channel sizes | 5/8/10/20/30/40 MHz |
Polarization | Dual linear |
Operating Frequency (MHz) | |
Worldwide | 5170 - 5875 MHz |
US/CA | 5725 - 5850 MHz |
