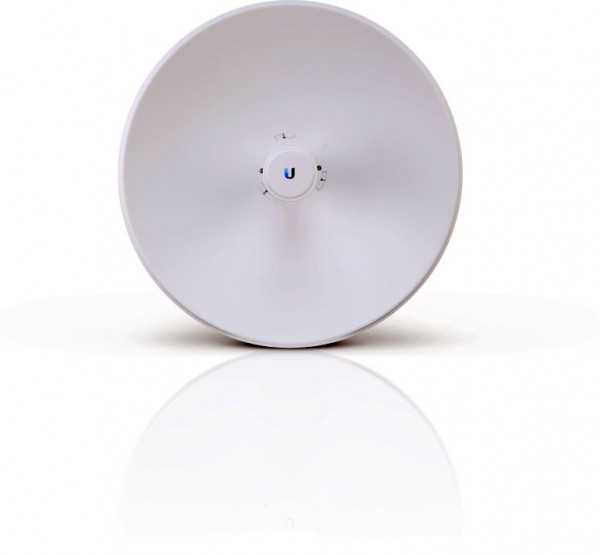

Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE

Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up... more
Product information "Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE"

High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up to 450+ Mbps data throughput.

5 GHz, 15+ km link range

450+ Mbps throughput

Improved mounting

Dedicated spectral analysis radio

Dedicated WiFi management radio

Technical Specifications

Mechanical
Dimensions 420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight 2.22 kg (4.89 lb)
Enclosure materials UV-stabilized plastic, powder-coated SPCC
Wind loading 380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Mounting Pole mount kit (Included)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. power consumption 8.5W
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range 20—26V DC
ESD/EMP protection Air/contact: ± 24 kV
LEDs (1) Power, (1) LAN, (4) WLAN
RoHS compliance Yes
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 70 C (-40 to 158 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 25 dBi
Channel sizes PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
