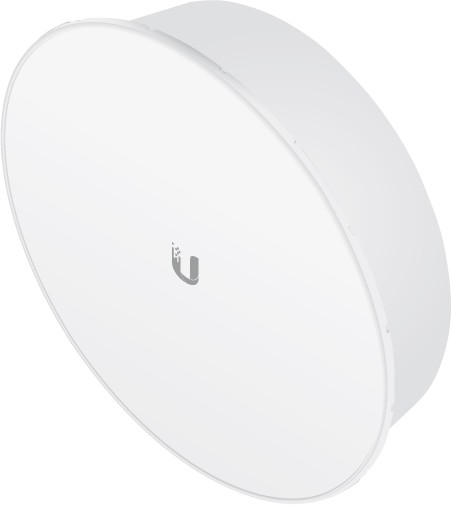

Ubiquiti airMAX PowerBeam M5 300 ISO
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 123021
- vendor: Ubiquiti
- mnufacturer no.: PBE-M5-300-ISO
- EAN No.: 810354023804
- weight: 3.354kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
5 GHz, 22 dBi bridge with 300 mm RF isolated reflector and 150+ Mbps throughput.
5 GHz,... more
Product information "Ubiquiti airMAX PowerBeam M5 300 ISO"
5 GHz, 22 dBi bridge with 300 mm RF isolated reflector and 150+ Mbps throughput.
5 GHz, 20+ km link range
150+ Mbps throughput
Isolation antenna design rejects RF noise
Improved mounting
Technical Specifications
| PBE-M5-300-ISO | |
|---|---|
| Dimensions | 364 x 364 x 276 mm (14.33 x 14.33 x 10.87") |
| Weight | 2.55 kg (5.62 lb) |
| Power Supply | 24V, 0.5A PoE |
| Max. Power Consumption | 6W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20-26VDC |
| Operating Frequency | Worldwide: 5170 - 5875 MHz US: 5725 - 5850 MHz |
| Gain | 22 dBi |
| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount Kit Included |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
